D2 Multifunctional speedometer / tachometer gauge kit

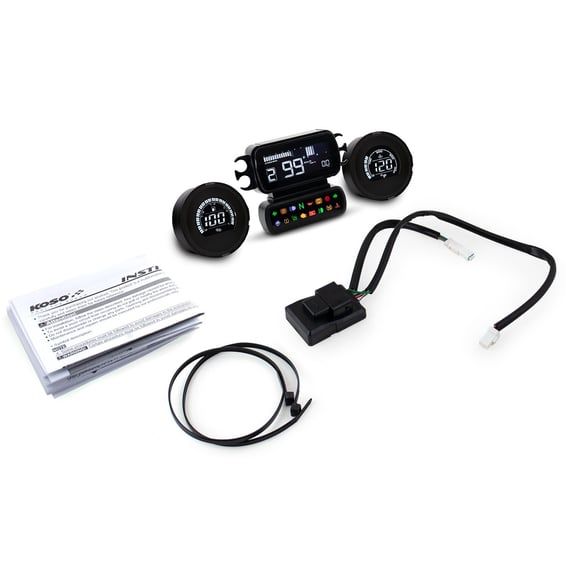

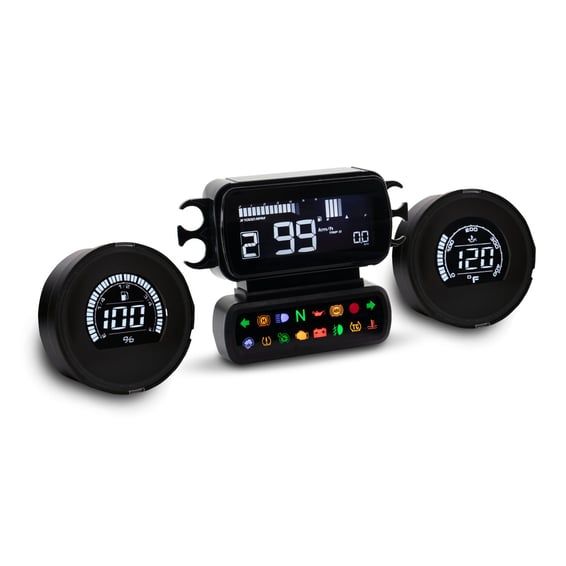

Kit includes a D2 digital gauge and 2 round digital gauges that display fuel & oil temperatures. Used to upgrade your Bagger with advanced functionality. Features an 8-color interchangeable LCD display and comes with a series of programmable options. Seamless integration with the stock wiring harness and full CAN-Bus compatibility, installation is quick and straightforward. Note: For CVO models, the Run/Stop switch must remain ON to access the settings. Adjustments can then be made directly on the meter. - Speedometer range (digits): 0-199 km (0-124 miles), displays per 1 kmh (mph) - Display delay : < 0.5 seconds - Internal and external odometer: 0 to 999.999 km (miles), displays per 0.1 km (mile) - Trip meter A/B: 0 to 9999.9 km (mile) with auto reset after 9999.9 km - Tire circumference adjustment: 50 to 210%, sets per 1% - Tachometer: 0 - 10.000 rpm - Backlight colors: White, Red, Orange, Yellow, Blue, Light Blue, Purple, Green - Maintenance intervals: Off, 500 - 16.000 km (300 - 10.000 miles). Sets per 100km (miles) - Indicator lights: Right turn signal (Green), left turn signal (green), security (Red), ABS (Amber), engine oil (Red), neutral (Green), high beam (blue), low fuel (amber), fog light (green), battery (Red), engine light (amber), cruise control light (green/amber), tire pressure warning (amber) - Shift light: 2.000 to 10.000 rpm adjustable (red/white backlight flashing). Sets per 100 rpm - Engine temperature: -38 to 572°F (-39 to 300°C) - Clock: 12h / 24h adjustable - Volt meter: Range 8 - 18V - Backlight Brightness: 1/5 (darkest) to 5/5 (brightest) - Tire Pressure: TPMS, FR/RR/LR when TPMS supported. Range HI, 0-73 PSI, 0-506kPa, 0-5.0bar. Displays per 1 PSI, 1 kPa, 0.1 bar - Fuel gauge: 10 levels - Voltage: 12V DC - Works in: -20~85°C - Storage Temperature: -30 to +90 °C - Confirm JIS D 0203 (S2) standard - D2 Gauge size 88.2 x 67.0 x 35.2 mm - D2 Gauge Weight: Approx. 70 grams - Add-on round gauge fuel & oil temperature kit measures: 70mm outside diameter x 45mm deep
