Reaper Race Series 538 cam kit

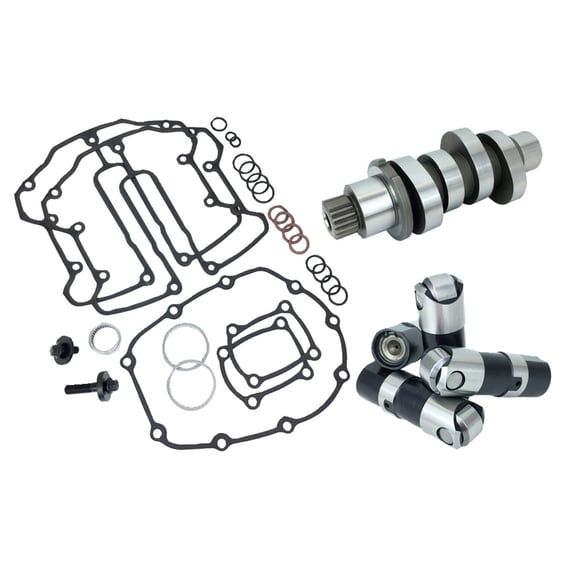

Note: Special Order Product only. To order please contact your MCS sales representative. Chain drive. This Feuling M8 camshaft kit includes chain drive camshaft, Race Series lifters and a cam installation kit that includes cam bearing, cam/crank hardware and a gasket/O-ring kit that allows for install of the factory one-piece pushrods. Feuling recommends the optional 993528 Feuling one-piece heavy duty HP+ pushrod kit, with 0.165" wall thickness. Feuling rocker box fastener kit 707450 is also highly recommend to help prevent cylinder head cracking, this kit replaces the rocker shaft bolts with studs and nuts to help reduce the stress on the rocker shaft standoffs. 538 CAM - Aggressive camshaft with a "nasty" sound. This camshaft revs up fast and pulls hard in engines with big bore cylinders, modified cylinder heads, intake, compression and exhaust. The REAPER 538 grind will shine in 124" and larger cubic inch engines with added compression ratio. Ported cylinder heads are not required but will complement the cam and add even more pulling power throughout the range. The stock throttle body produces an excellent powerband and use of a high flow throttle body will increase peak power numbers. A high flow exhaust system and air cleaner is highly recommended for optimal performance. Feuling recommends matching this cam with their Race Series oiling system. NOTE: High Lift valve springs are required on stock cylinder heads, see FEULING BEEHIVE valve spring kit 993530. SE cylinder heads have high lift valve springs but will need to be verified. Heavy Duty one piece pushrods are also highly recommended, like Feuling's 993528 pushrod kit. Kit includes 707544 538 camshaft. RPM range 2,350 - 5,975. Grind: 538 ..................Valve Lift Open Close Duration @ 50" lift @ TDC Lobe Centerline Intake .538 20.5 BTDC 38.5 ABDC 239 .180 99 Exhaust .542 48 BBDC 18 ATDC 246 .157 105 Overlap: 38 Race Series hydraulic lifters have a full .200" of total travel designed with a slower bleed down rate to handle heavy valve spring pressures, increase engine RPM before valve float and feature increased roller clearance for steep ramped camshafts and clearance for the M8 front exhaust camshaft lobe flange. *Cam specs measured on the lifter @ 0.050" lift with 1.61 rocker arm ratio DISCLAIMER: NOT LEGAL FOR SALE OR USE IN CALIFORNIA ON ANY POLLUTION CONTROLLED MOTOR VECHICLE Feuling does not recommend tuning beyond stock emissions standards.
